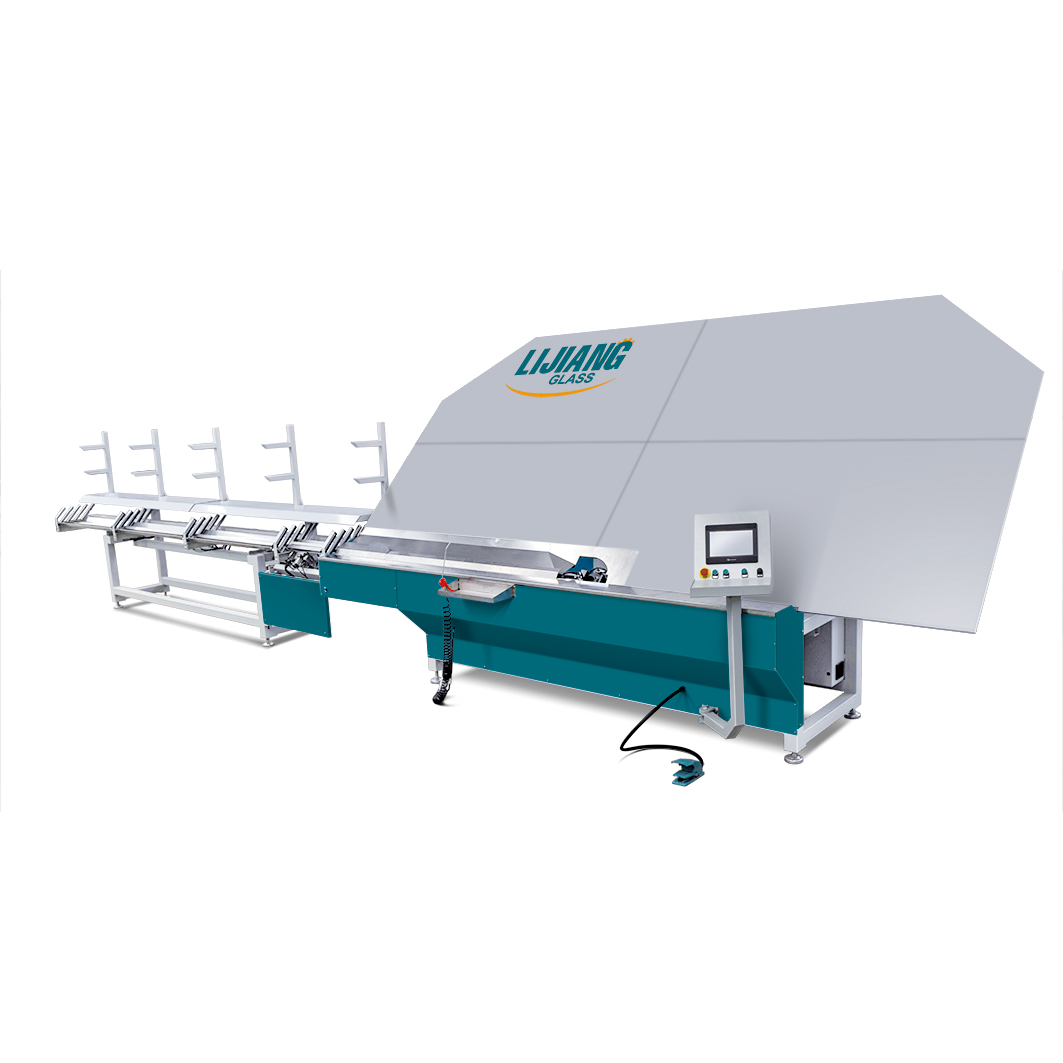

Automatic Spacer Bending Machine

Automatic Spacer Bending Machine

Max. bending size:1800*2000mm（In once）/ 2500*4000mm（In twice)
Aluminum spacer width:5.5-26.5mm
Min. bending size:150*300mm

Automatic Spacer Bending Machine can realize the automatic connection of aluminum spacer, automatic material breaking function and automatic avoidance of aluminum spacer joint. With a support platform at a 45° angle to manufacture spacer frames at selectable angle which is used in insulated glass units.
The automatic feeding system delivers up to long bars directly from storage and connects together to have the endless bending. With its optimization software the machine makes optimization for bending and cutting for minimum waste. The system is based on PC and controlled by servo motors.

Fully automated spacer bending for insulated glass production
Fast, accurate and stable spacer bending system
Compact and space effective design
Extremely robust structural design

The system consists of a spacer magazine, a sawing unit for all materials, an insertion unit and the bending unit with profile transport. Dimensionally accurate spacer frames are produced from all common profile materials. The correct spacer material is selected from one of slots in the profile magazine according to the order sequence. By decoupling the sawing process from the bending process, the production quantity increases significantly compared to conventional bending machines. The automatic adjustment of the bending tool to the selected profile width results in significant time savings.

Performance

•Adopt the servo control feeding system, spacer size can be adjusted with an accuracy of 0.1 mm/m
•CNC bending angle control system with adjustable accuracy of 0.1°
•Set up four groups of spacers storage units
•Aluminum bar with multiple sizes can be selected at will
•Automatically adjust the bending speed according to the size of the aluminum spacer to avoid the deformation of the large spacer and ensure the high speed and continuity of the small frame
•Automatic continuous connection of spacer, cutting spacer, avoidance of spacer joint
•No material prompt, sleep prompt, fault prompt, work prompt, unreasonable data refuse processing and prompt support arc-shaped aluminum spacer and specialshaped aluminum spacer bending
•USB function, which can read excel directly
•Connect with ERP（optional）

Parameter
