CNC Flat Glass Washing Machine (Vertical/Horizontal)

CNC-Industrial-Glass-Washer-Vertical-Flat-Glass-Washing-Machine
CNC-Industrial-Glass-Washer-Vertical-Flat-Glass-Washing-Machine

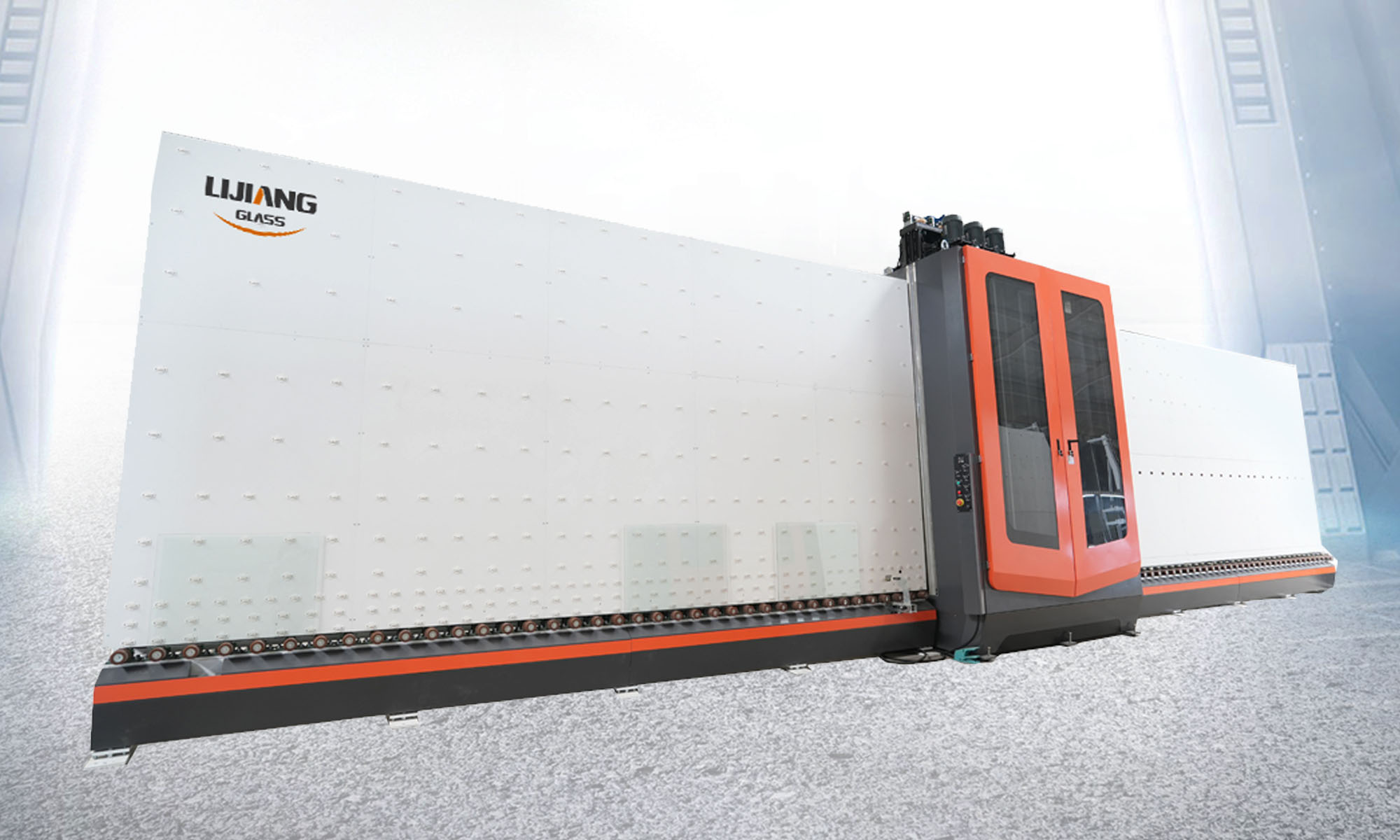

CNC Flat Glass Washer, Vertical Glass Washing Machine

CNC Automatic vertical glass washing machine has separate washing and drying system, Designed for washing and drying in insulated glass production and washing the glass for glass processing.

Max. glass size:2500mm*3500mm
Glass thickness:3-15mm
Insulating glass thickness:60mm

Automatic Glass Washing Machine Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

  • Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass
  • Pre-washing (Optional)
  • New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
  • The air knife can automatically adjust the width of the air knife according to the thickness
  • The operation box with washing speed display, can accurately display washing speed (8-10m)
  • Water tank automatic temperature control, water replenishing system
  • European silencer system
  • Stainless steel material

Transfer section of the vertical glass washing and drying machine

  • 1. Low – e glass sensor
    This sensor is installed before washing machine.It can automatically recognize Low- e glass, preventing the glass from dropping Low – e surface.
  • 2. Conveyor roller The transfer :
    The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big size glass and thick glass pass through smoothly

Washing & drying section of the vertical glass washing machine

  • Materials:
    The whole washing and drying section adopt stainless steel material, including the plate and interior spare parts,with waterproof accessories.
    The thickness plate on the washing machine can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer.
  • 6 pieces of Soft Brushes: It has 6 brushes which are all soft brushes, can wash flat glass, temper glass and low – e glass. It has a diameter of less than 0.1mm bristles, never damage glass, especially for protecting low – e glass.
    SUS Vertical Glass Washing And Drying Machine With Soft Brushes 1
  • Noise reduction device:
    The noise can be controlled below 90 decibels by using nylon gear and sponges, our washing machine has the smallest noise decibel.
  • Water heating system:
    Adopts air heating system, use soft water to wash glass clearly
  • Unique air knife design:
    Air knife is float design, it always keep the right and suitable distance 3mm between the glass surface and air knife (Same like LISEC structure ) check the following picture. (3mm is the best drying distance)
  • Automatically recognize glass thickness:
    1) There is a universal joint device, when the glass thickness was changed, the wind knife will move forward and backward to adjust the distance so that the relative distance between the wind knife and the glass is constant, so as to avoid damage to the glass due to the changes of the glass thickness.
    2) There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly .The front and back squeeze wheel are all actively moved and conveyor. No mater the glass size is big or small , it all guarantee the glass pass through smoothly.

Technical data

Max. glass size 2500mm*3500mm
Max glass size for filling gas 2500mm*3200mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg

Horizontal Glass Washing Machine, Flat Glass Washing Machine

Automatic Horizontal Glass Washing and Drying Machine

Maximum glass width: 2500mm (effective maximum: 2600mm)
Minimum glass specification: 400mm×400mm (limited to single row on left and right sides)
Glass thickness: 3mm-25mm (digital display)

Glass washing machine LJQXJ2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.

Structural characteristics:

  • 1. Aluminum alloy assembled structure, no scrap concept, permanent use, high efficiency, energy saving 70% efficiency;
  • 2. The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder;
  • 3. The rubber roller is made of vulcanized rubber with stainless steel shaft;
  • 4. The washing part in contact with water is made of stainless steel;
  • 5. Cleaning department, wind staff overall lift, the maximum lift: 400mm,easy to clean and maintain;
  • 6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface);
  • 7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing);
  • 8. The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning;
  • 9. Main drive for gear transmission, frequency control, digital display , the rotation of the brush roller in the washing section is driven by independent belts of the upper and lower motors respectively, the frequency conversion adjustment speed is stable, the service life is long, realizes the cleaning high request special glass;
  • 10. Mechanical button control, cleaning machine digital display, easy to operate,easy to operate, easy to maintain;
  • 11. Washing machine water tank outside, convenient water tank cleaning, water change, check, so that the washing machine cleaning effect is cleaner.
  • 12. Optional with PLC control, touch screen display.It is convenient for workers to operate and maintain, and can be connected to all manufacturers of edge grinding machines without gap.(purchase separately if necessary)

Technical parameters:

  • 1. Maximum glass width: 2500mm (effective maximum: 2600mm)
  • 2. Minimum glass specification: 400mm×400mm (limited to single row on left and right sides)
  • 3. Glass thickness: 3mm-25mm (digital display)
  • 4. Speed range: glass thickness within 3-25mm Vmax=1-12m/min
  • 5. Main drive, brush speed regulation method: frequency control
  • 6. Table height :900±50mm
  • 7. Total power: 45KW
  • 8. Water source: self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
  • 9. Power source: 415V 50Hz
  • 10. Dimensions (length × width × height) : approximately 6200*3640*3100
  • 11. Weight: about 4500kg
Maximum glass width 2500mm (effective maximum: 2600mm)
Minimum glass specification 400mm×400mm (limited to single row on left and  right sides)
Glass thickness 3mm-25mm (digital display)
Speed range glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method frequency control
Table height 900±50mm
Total power 45KW
Water source self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
Power source 410V 50Hz
Dimensions (length × width × height) approximately 6200*3640*3100
Weight 4500kg
