Glass Laminating Machine, PVB Laminated Glass Production Line

EastGlaz Laminated Glass Production Line by Glass cleaning and dryer, Plate positioning conveyor, PVB film machine, Cut-type suction cup hanger, Transition conveyor, Prepress composition.

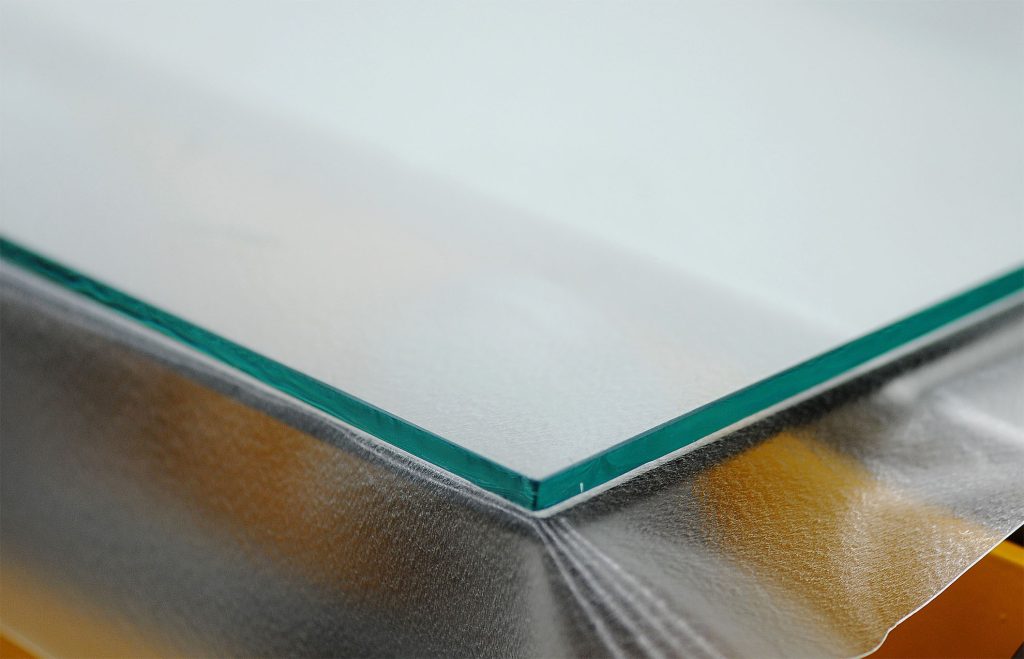

Laminated Glass

Laminated Glass

Laminated glass is composed of two or more pieces of glass with one or more layers of organic polymer interlayer film (PVB/SGU) between them. After a special high-temperature pre-pressing (or vacuum) and high-temperature and high-pressure process, glass and intermediate film are permanently bonded as one of the composite glass products. When the outer glass breaks due to impact, the glass fragments basically adhere to the film, only forming radial cracks, keeping the fragments on the entire laminated glass from falling off, and preventing personal injury or death accidents caused by the fragments flying, so it becomes a real Meaningful Safety Glass.

1. Technical characteristics of the front-section production line:

  • 1.1. Adopt PLC centralized control, touch screen display and operation, and focus on the control cabinet of the closing chamber.
  • 1.2. Cleaning the dryer is the key equipment of the whole line. According to the thickness of the glass can electrically adjust the upper rubber roller, brush roller, wind blade and so on the device, with digital display. The upper part can be raised up to 400mm for easy cleaning and maintenance. The transmission of the brush roller is driven separately by the upper and lower one motor. The upper brush roller has two hard brushes with cylinder lift and a soft brush. This arrangement can clean the hard LOW-E glass and coated glass without damaging the coating surface. Equipped with two pairs of stainless steel wind knives, the fan is equipped with silencing cotton and air inlet filter net, large air volume, small noise, good air drying effect.
  • 1.3. The sheet room is equipped with a sheet table, can lift the universal wheel frame, positioning cylinder, rubber film paving machine, suction cup hanger, which is very convenient to operate multiple pieces for sheet. After positioning, each single piece of sheet will be automatically transmitted to the front end through the transition transmission section, and then run at the same speed as the prepress, so as to quickly vacate the space for the next glass sheet.
  • 1.4. The prespress has reasonable structure and easy to operate. The main transmission adopts frequency frequency regulation and gear transmission. The whole machine is running smoothly and reliably, and is centrally controlled by the sheet chamber. The front and rear two independent large pressure rollers are driven independently by the reducer, the gap adjustment is PLC control and setting, touch screen display and operation, and the limit adjustment of the upper pressure roller is coaxial transmission to ensure that the gap between the two large pressure rollers is consistent.

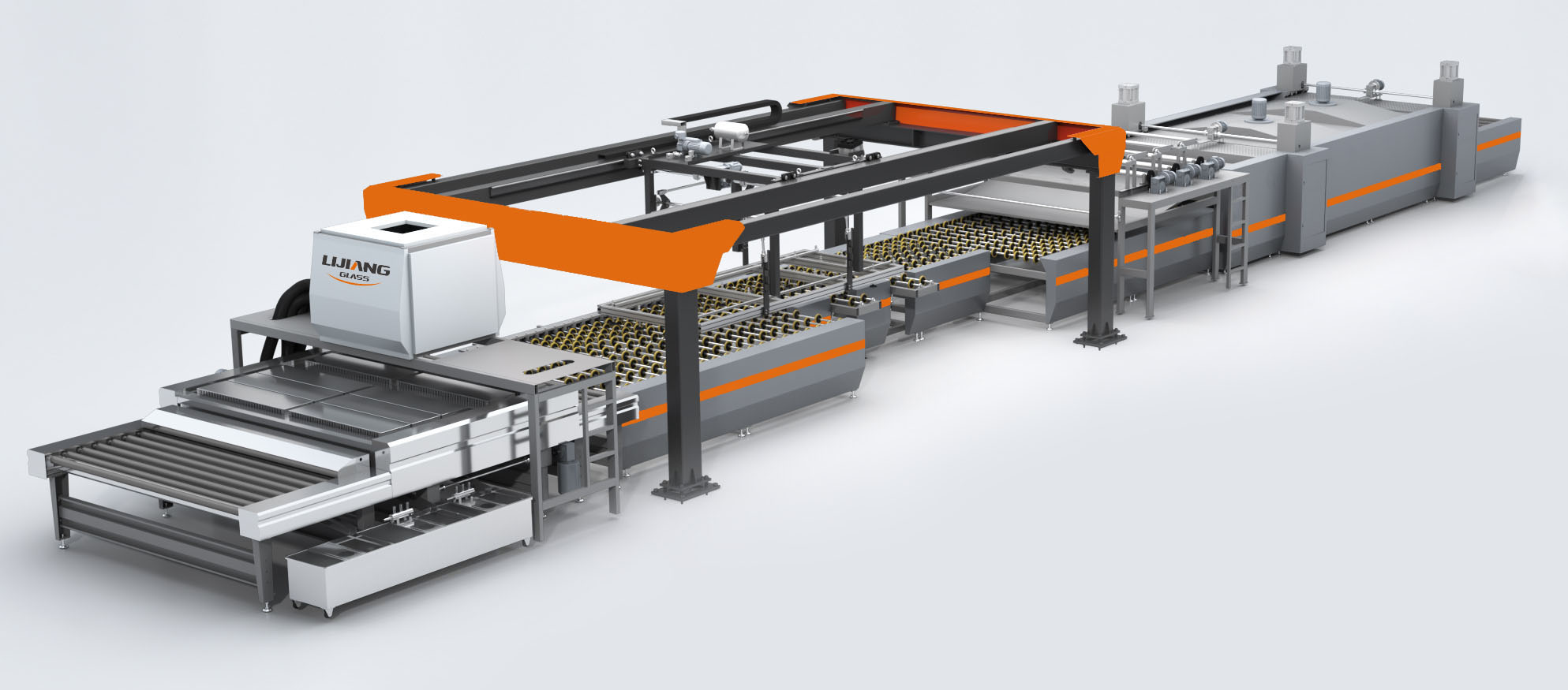

2. Production line composition:

  • 2.1. Glass cleaning and dryer
  • 2.2. Plate positioning conveyor
  • 2.3. PVB film machine
  • 2.4. Cut-type suction cup hanger
  • 2.5. Transition conveyor
  • 2.6. Prepress (independent large pressure roller drive + three main heating)

3. Technical parameters of the production line:

  • 3.1. Regular glass size (more than three pieces): 25003500mm;
  • 3.2., Large size (two pieces): 25006000mm;
  • 3.3. Minimum glass length: 420mm;
  • 3.4. Minimum glass width: 300mm;
  • 3.5. Glass thickness: 6~80mm;
  • 3.6. Total length: about 28.81M
  • 3.7. Total power: about 200Kw;
  • 3.8. Gas source: pressure: 0.5-0.8Mpa, flow rate: 13.6L / min.

TPU/SGP/EVA Glass Laminating Machine

TPU/SGP/EVA Glass Laminating Machine

TPU/SGP/EVA laminated glass machine is one kind of glass laminating equipment no need autoclave system. It can be used to adopt EVA/TPU(NEW PVB)/SGP film to produce various kinds of laminated glass in one step, such as tempered laminated glass, bending laminated glass, bulletproof laminated glass, decorative laminated glass, LED/ switchable laminated glass, etc

* Process EVA/SGP/TPU Laminated glass
* Adopt German Heating Technology
* Need only 0.3 degree for 1m² of glass
* No complaints from customers in the past 6 years
* Product yield at least 99%
* Selling to more than 68 Countries & Regions

Processing glass size: 2440*3660mm
Max. Glass thickness: 36mm
Efficiency: 90-120 minutes/cycle

Main Feature

  • 99% yield
  • 50% energy saving
  • High efficiency
  • PLC control, Simple to operate
  • High quality spare parts
  • EVA/TPU(NEW PVB)/SGP film as interlayer
  • Rich range of products
  • Large size bending laminated glass processing
  • No waste when suddenly power off
  • Free home installation and technical training
