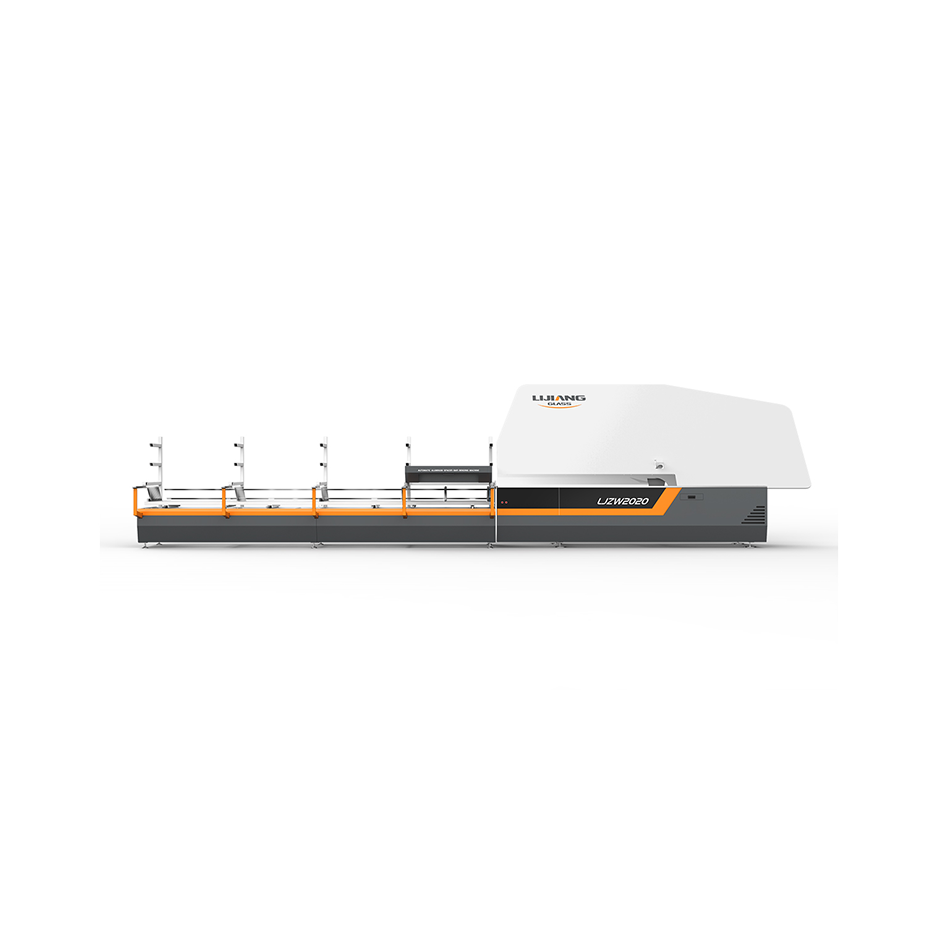

Automatic Spacer Bending Machine
LJZW2020
Max. bending size:1800*2000mm（In once）/ 2500*4000mm（In twice)
Aluminum spacer width:5.5-26.5mm
Min. bending size:150*300mm
Automatic Spacer Bending Machine can realize the automatic connection of aluminum spacer, automatic material breaking function and automatic avoidance of aluminum spacer joint.
•Adopt the servo control feeding system, spacer size can be adjusted with an accuracy of 0.1 mm/m
•CNC bending angle control system with adjustable accuracy of 0.1°
•Set up four groups of spacers storage units
•Aluminum bar with multiple sizes can be selected at will
•Automatically adjust the bending speed according to the size of the aluminum spacer to avoid the deformation of the large spacer and ensure the high speed and continuity of the small frame
•Automatic continuous connection of spacer, cutting spacer, avoidance of spacer joint
•No material prompt, sleep prompt, fault prompt, work prompt, unreasonable data refuse processing and prompt support arc-shaped aluminum spacer and special shaped aluminum spacer bending
•USB function, which can read excel directly
•Connect with ERP（optional）
Details introduce
• Printing logo (Option)
•Printing label sticker function (Optional)
• Bending warm spacer (Optional)
Max. bending size | 1800*2000mm（In once）/ 2500*4000mm（In twice） |
Min. bending size | 150*300mm |
Aluminum spacer width | 5.5-26.5mm |
Dimensional error | ±0.5mm |
Angle error | ±1º |
Processing speed | 17s |
Air supply | ≥0.65MPa |
Total power | AC220/380V 50Hz 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
