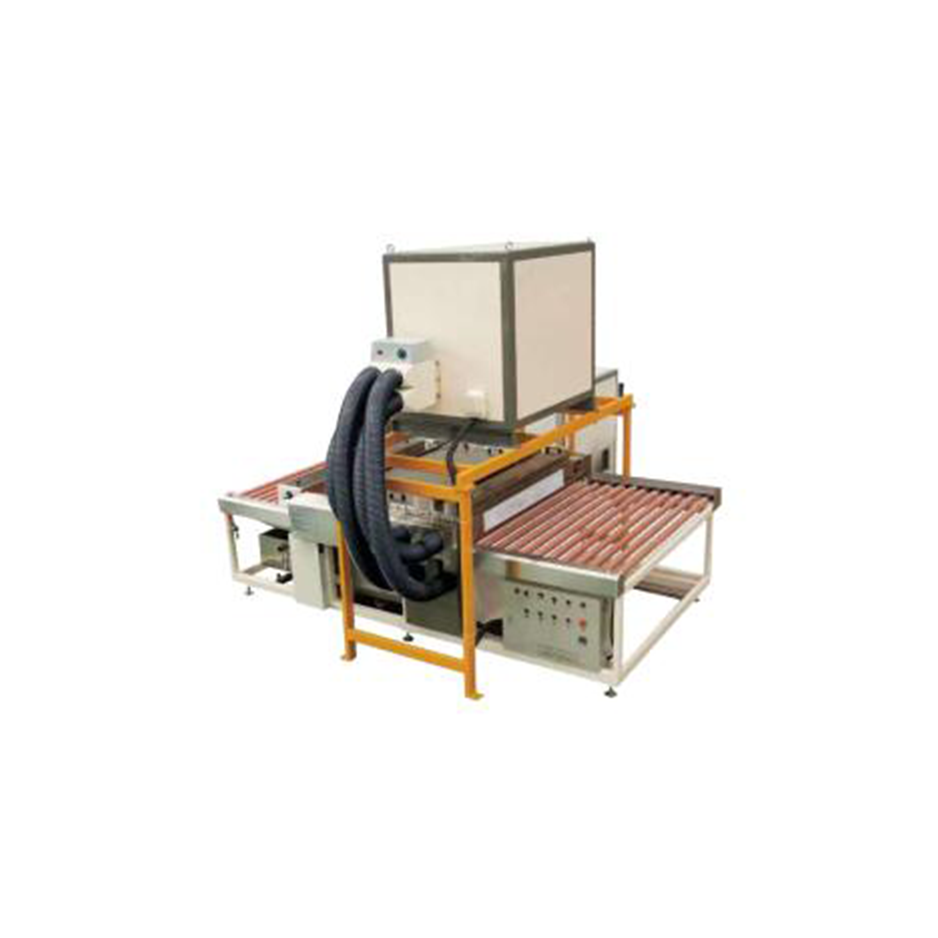

Horizontal Glass Washing and Drying Machine
LJBQJ2500
Maximum glass width:2500mm
Minimum glass specification:400mm×400mm
Glass thickness：3mm-25mm
Horizontal Glass Washing and Drying Machine LJWBQJ2500,can be equipment with pretreatment for temper furnace,laminated and insulating glass furnace;all stainless steel clean room,drying room,water tanks pumps, air knife,water pipe,cover,fan housing etc,.,ensure machine durable,not rust.
1. Horizontal Glass Washing and Drying Machine LJWBQJ2500, can be equipment with pretreatment for temper furnace,laminated and insulating glass furnace;all stainless steel clean room,drying room,water tanks pumps, air knife,water pipe,cover,fan housing etc,.,ensure machine durable,not rust.
2. Hand made of aluminum alloy support structure,combination of installation,no rust
3. High-precision lifting system,digital display raising height of the upper portion of the machine.
4. Three pairs high-quality nylon brushes,brushed the first two pairs brushed can raised to used for LOW-E glass cleaning.
5. All the machines conveyor rollers is vulcanized rubber rollers.
6. Main driving realize step-less speed regulating by inverter and speed gear transmission to ensure stable and reliable.
Technical parameters:
1. Maximum glass width: 2500mm (effective maximum: 2650mm)
2. Minimum glass specification: 400mm×400mm (limited to single row on left and right sides)
3. Glass thickness: 3mm-25mm (digital display)
4. Speed range: glass thickness within 3-25mm Vmax=1-12m/min
5. Main drive, brush speed regulation method: frequency control
6. Table height :900±25mm
7. Total power: 42KW(water-bearing wind heating: 15KW)
8. Water source: self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
9. Power source: 380V 50Hz
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
| Main drive, brush speed regulation method | frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100mm |
| Weight | 3940kg |
