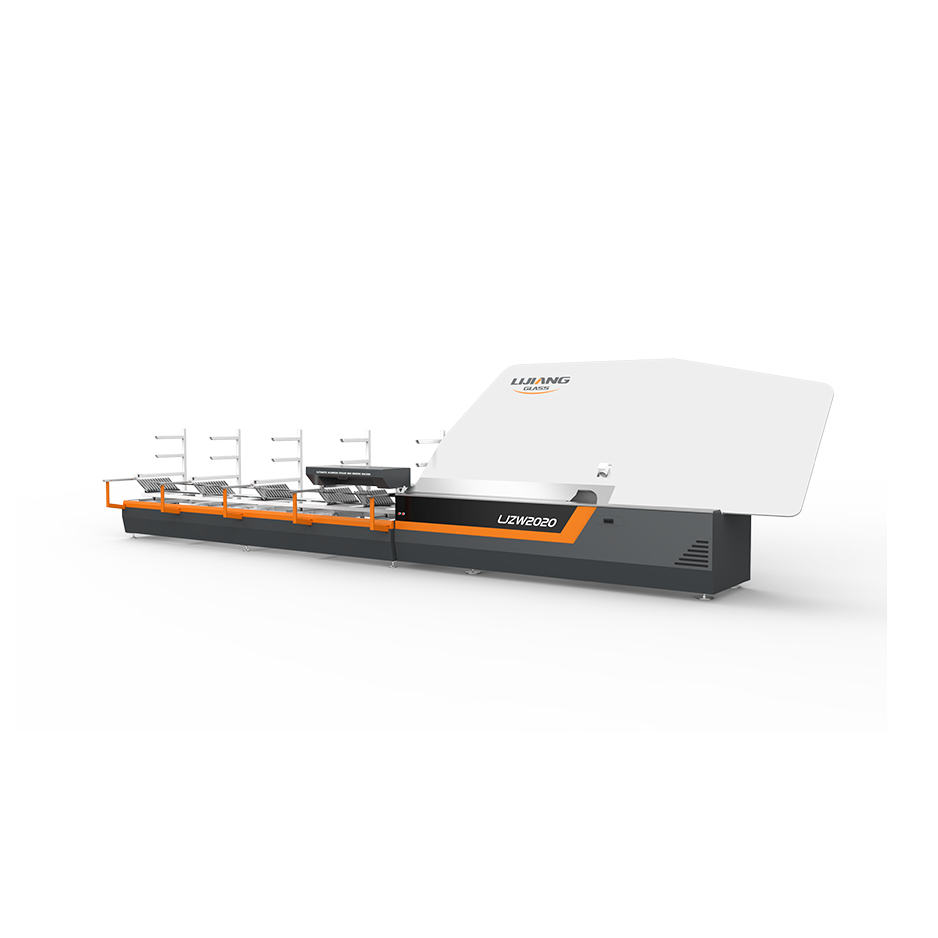

Automatic Multi-storage Aluminum Spacer Bending Machine
LJZW2020D
Max bending size:1800*2000mm(In once)/2500*4000mm(In twice)
Spacer racks:12
Aluminum spacer width:5.5-26.5mm
Automatic Multi-storage Aluminum Spacer Bending Machine ,Adopt 12 material storage units, Adopt variable cutter head.
Automatic multi-storage unit aluminum spacer bending machine LJZW2020D
Features of aluminum spacer bending machine
1, Adopt 12 material storage units, automatic switching;
2, Adopt variable cutter head, each type of aluminum bar can be switched freely, without replacing the cutter head;
3, Adopt computer control, can be connected to the factory ERP system (scan code to read data);
4, Stainless steel bending, laser coding function (optional);
5, Automatically generate and print bar code , convenient for the next process to read the data (optional).
Product description and mainly parameters of Automatic aluminum spacer bending machine
Model | LJZW2020D |
Dimension (L X W X H) | 10500 mm X 2200 mm X 2600 mm |
Storage Unit | 12 |
Air Source (MP) | ≥0.65MPa |
Power Supply and Consumption | AC-380V 50HZ 3.5 kw |
Size of Aluminum spacers | W: 5.5-26.5 mm L: 4000 – 6000 mm |
Size of Processed Aluminum Frames | Min: 150×300 mm Max: 1800×2000 mm(Once) 2500×4000 mm(Twice) |
Conveyor Speed | 1250mm/s |
Weight | 1580 KG |
