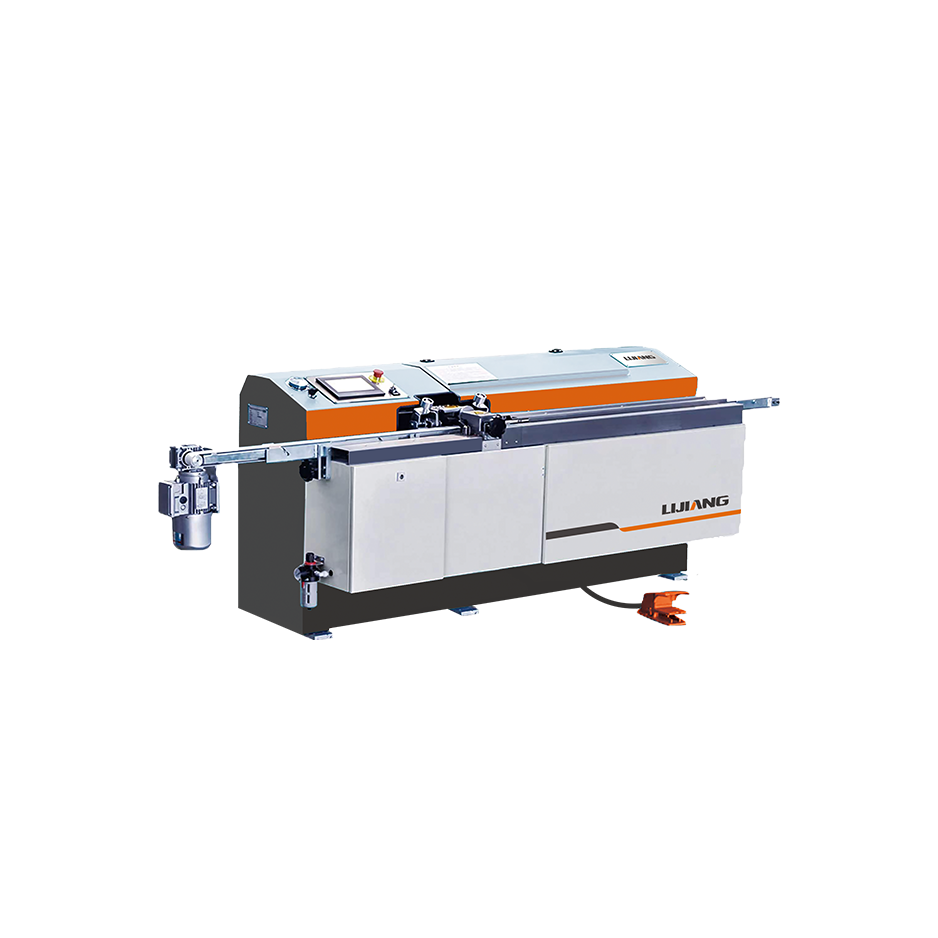

Automatic Butyl Extruder Machine
LJTB01
Glue thickness:0.3-0.5mm
Glue width:3.5mm
Diameter of butyl cylinder:200mm
Automatic Butyl Extruder Machine is used to coat butyl rubber on both sides of insulating glass aluminum spacer strip.
•The butyl extrusion speed can reach 47 m/ min
•Saving butyl by compared with ordinary machine. The glue can reach 7g/m
•Manual exhaust, simple operation
•Adopt non adhesive synchronous belt, talc powder is not required to clean it
•Main accessories are made of German brand, PLC program control, stable performance
•Using movable vertical butyl release and horizontal extrusion, convenient and practical
•Adjust the width of glue head automatically, ensure the double side gluing is consistent with the quick opening valve integrated control
• The height adjustment of beam is convenient, effective to solve the problem of white line
• Use touch screen operation, simple trial
•Adjust the butyl output automatically according to the speed change
•Adopt brand hydraulic system to ensure uniform and full rubber output
•The butyl cylinder adopts the pull-up structure, which is convenient for changing the butyl
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Glue thickness | 0.3-0.5mm |
Glue width | 3.5mm |
Aluminum spacer width | 6A - 27A |
Speed | 5-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5.7KW,50HZ |
Dimension | 2800×700×900mm(L×W×H） |
weight | 650kg |
• Big glue barrel, 200L. (Option)
