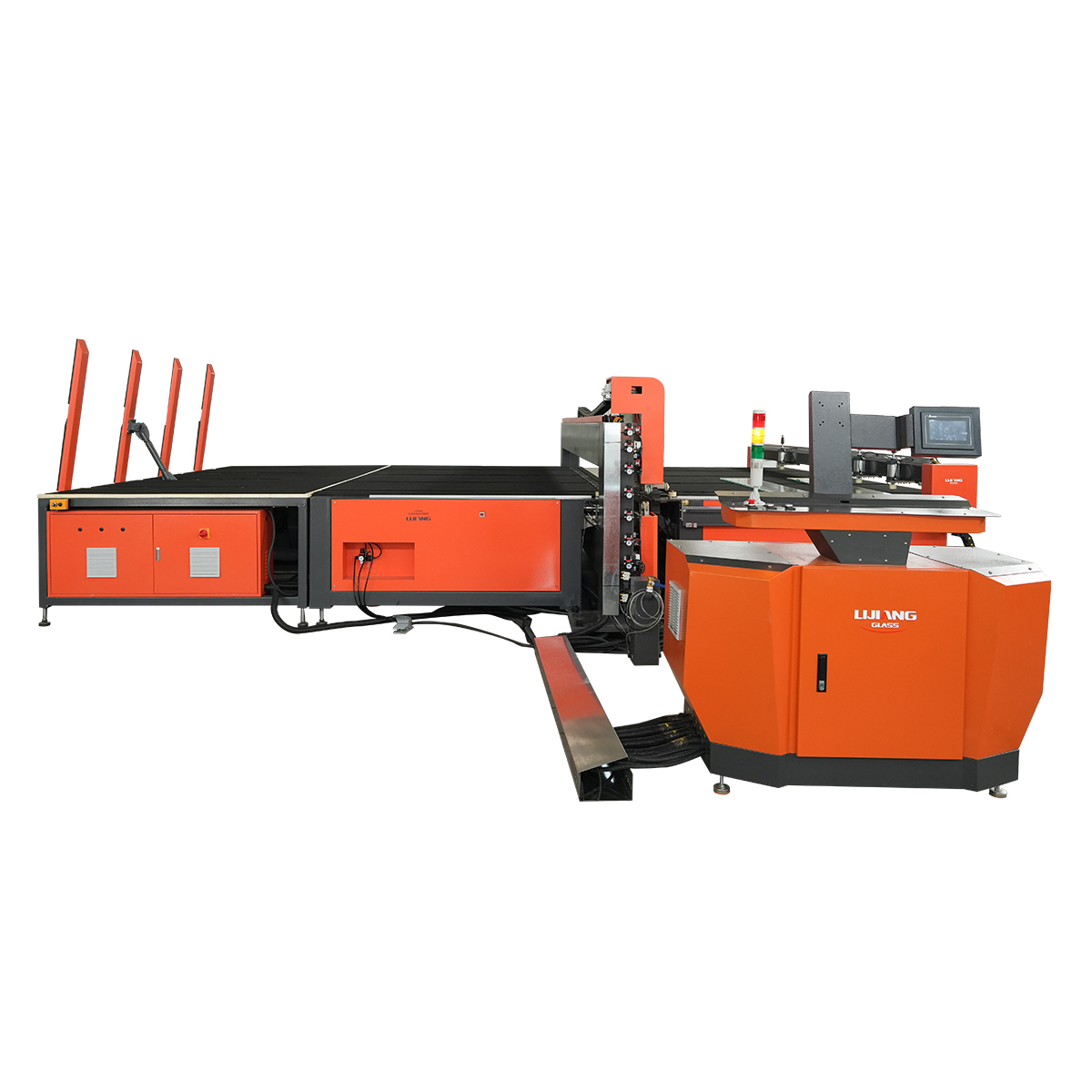

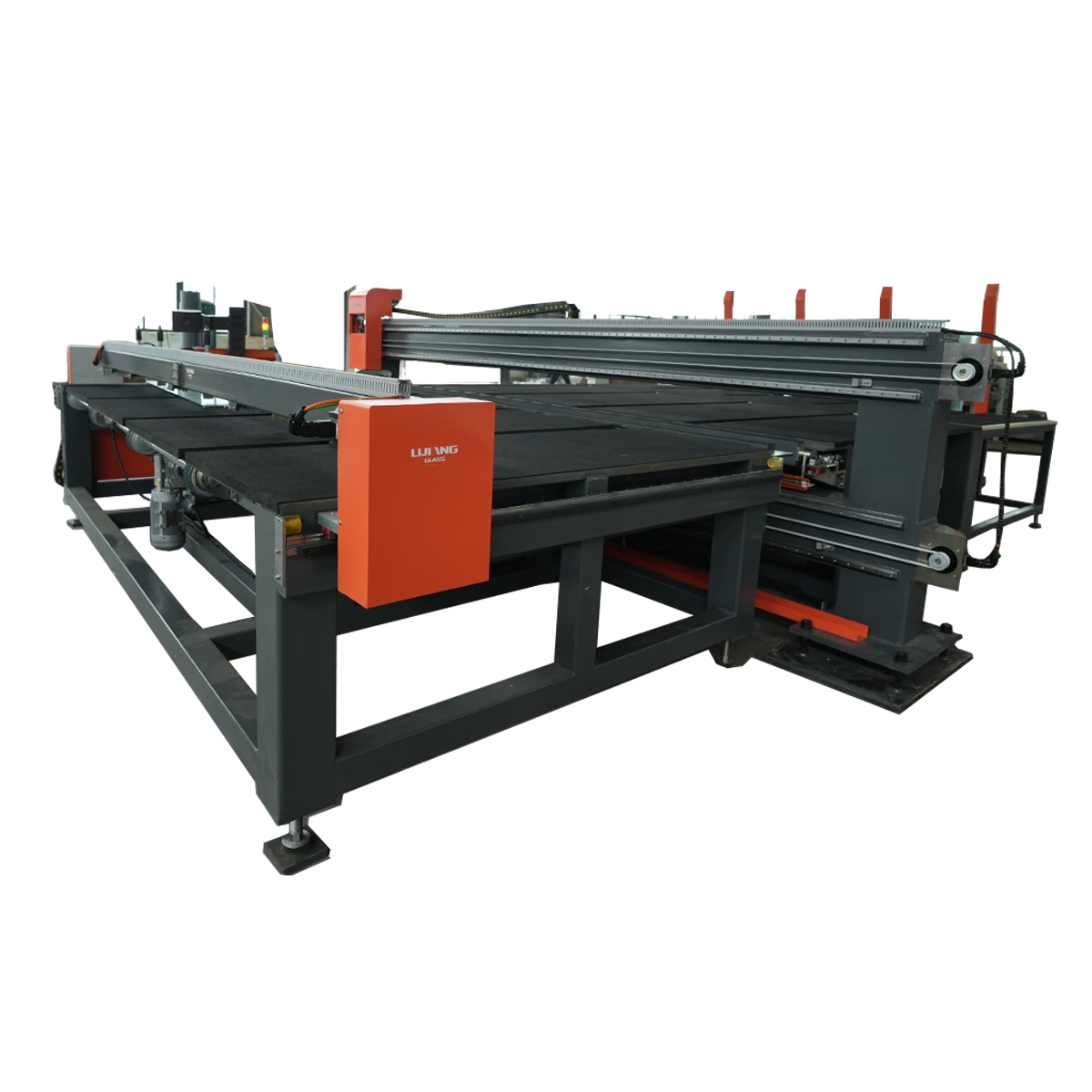

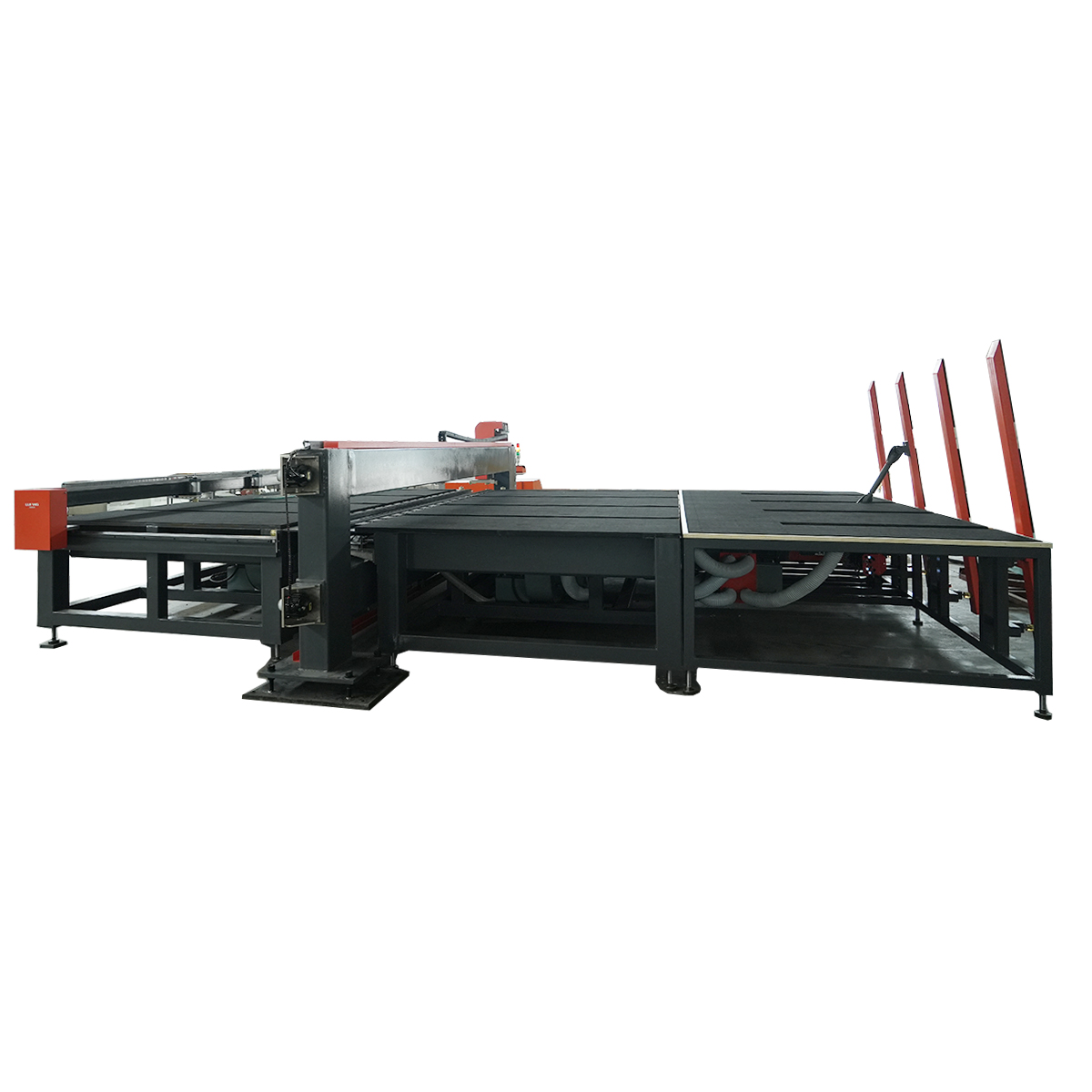

Full-automatic Laminated Glass Cutting Line, Automatic cutting machine for laminated glass
1. Frame was made with international square steel tube and box iron by welding.The key position had been annealing treatment and gantry milling. So the frame has high stability and strength.
Two-part construction to assemble the machine. The first part is the artificial auxiliary feeding and transmission part, equipped with automated positioning KTstem. The second paragraph contains the upper and lower knife cutting KTstem, the cutting film KTstem, the heating KTstem, and the auxiliary discharge KTstem.
1. Machine Parameters
1.Size of machine:4800*3800*1300mm
2.Weight:about 3000KG
3.Processing range of glass size:400*400mm ------ 3800*2600mm
4.Processing range of glass thickness:3+X+3mm--------8+X+8mm
5.Cutting speed: cutting twice in one minute
6.Temperature and time of heating: Adjust by operater
7.Pressure of pushing and breaking: Adjust by operater
8.Input Voltage ：380V 50Hz 3P
9.Cable: Four-core wire (Yellow/green ground wire)
2. Machine configuration
1.Motor:Delta SERVO MOTOR
2.Drive: Delta
3.Plc and touch screen: Delta
4.Electrical elements: CHINT
5.Program: Self-Design
6.Heatting tube: China
7.Timing belts and wheels: China
8.Air cylinder and knife: Self-Design
9. Knife wheels: imported from Japan
10.Draught fan: China
11.Transmission shaft: China
12.Felt:imported
13.Proportional control valve: SMC from Japan
3. Technical process
1. Man-machine interface HMI setting KTstem parameters such as glass width, length, under knife pressure, etc.一一mechanical placement of glass into the KTnchronous belt area of the cutting table一一Automatic transmission and positioning of glass according to the cut size of input（There's a location KTstem）一一Knife head at zero一一Pneumatic lower knife, upper and lower knife wheel cut（There's an automatic injection KTstem）一一Cut and lift一一The upper press starts the press, and the lower surface glass breaks open一一Under the top rod up the glass, the upper surface of the glass break open一一Heat bar, start heating一一The vacuum suction cup absorbs the glass on both sides of the tangent line and pulls the cutting seam apart一一Cutting film（PVB or EVA）一一The cutting action is complete and the entire artifact is transferred to the next segment tangent position（If you need to turn around and cut, you need to do it manually）一一Whole cutting is complete.一一Manually move the processed glass to the lower slide flip bracket with the air float assembly.
4. Advantage
1.Can automatically set the cutting length width, labor saving.
2. Compare the previous ones,faster, more accurate.
